Suspension component

Heavy-Duty Suspension Mounting Brackets & Pivot Assemblies

Reinforced mounting brackets, pivot housings and link supports for heavy-duty suspension installations.

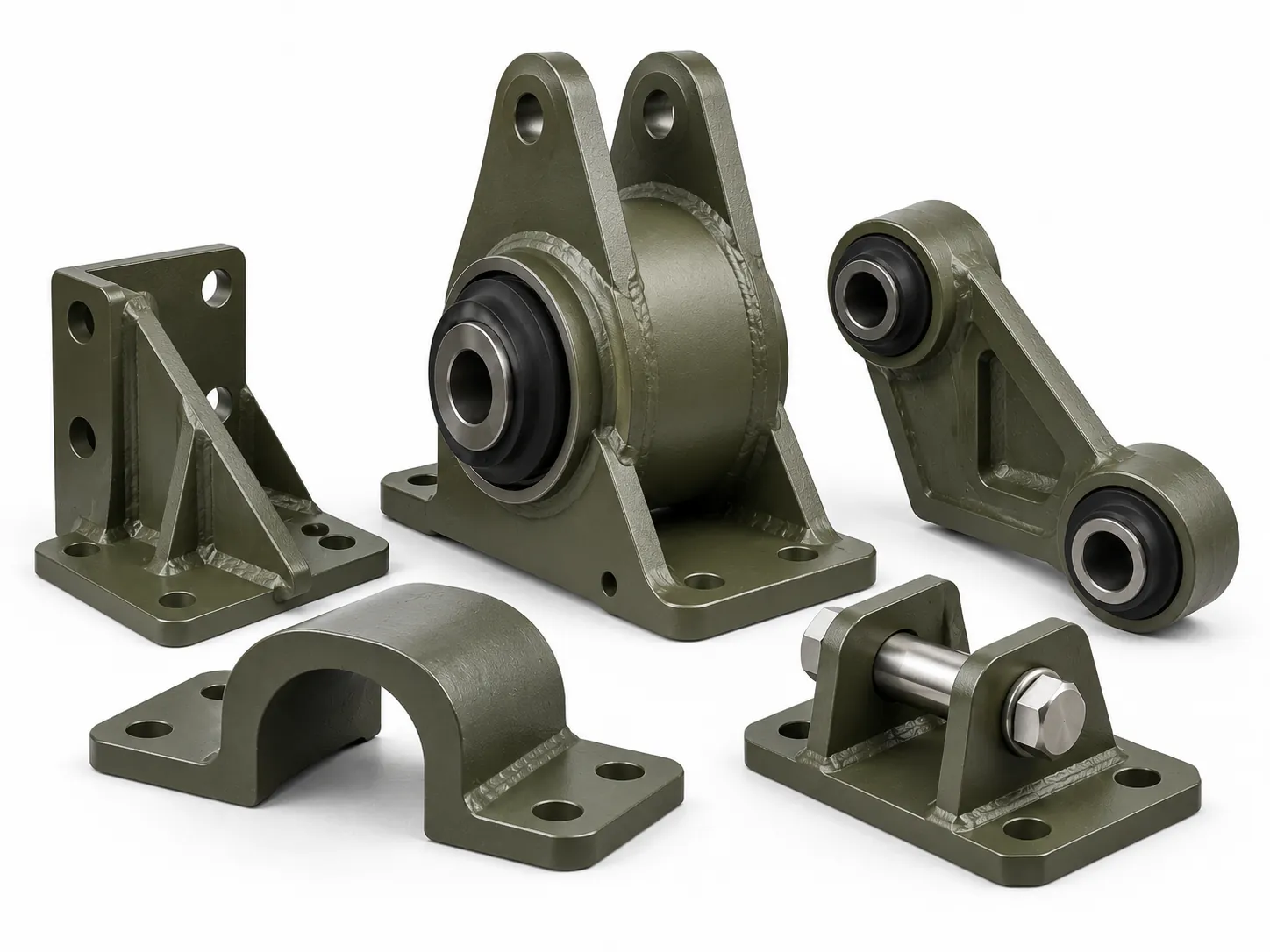

Heavy-duty suspension mounting brackets and pivot assemblies for armored vehicles

Product overview

A group of reinforced steel mounting and pivot components used to locate suspension links, bushings and load-bearing suspension interfaces on heavy-duty or specially converted vehicles.

Typical configuration and use

Welded and machined steel mounting structures
Pivot and bushing interfaces for suspension link connections
Suitable for specification-led replacement or custom vehicle integration
Dimensions and mounting geometry must be matched to the vehicle

CategorySuspension

ApplicationArmored, reinforced & special-purpose vehicles

Commercial statusSpecification and price on request

Request a Quote →

Fitment data

Information required for an accurate quotation

We do not publish invented universal dimensions or load ratings. The correct specification depends on the actual vehicle, suspension position and conversion. Please include the following details:

Vehicle make, model, year and conversion/application
Overall bracket dimensions and mounting-hole spacing
Pivot/bushing bore diameter and width
Photos of the original mounting location and mating component

Why fitment verification matters

Armoring and additional equipment can change vehicle mass, axle load, ride height and suspension travel. A part that looks similar may still have different dimensions, mounting geometry or load characteristics. Final suitability must therefore be confirmed against the vehicle and installation.

Read: Suspension Planning for Increased Vehicle Weight →
