Heavy-Duty Leaf Spring Shackle Assemblies

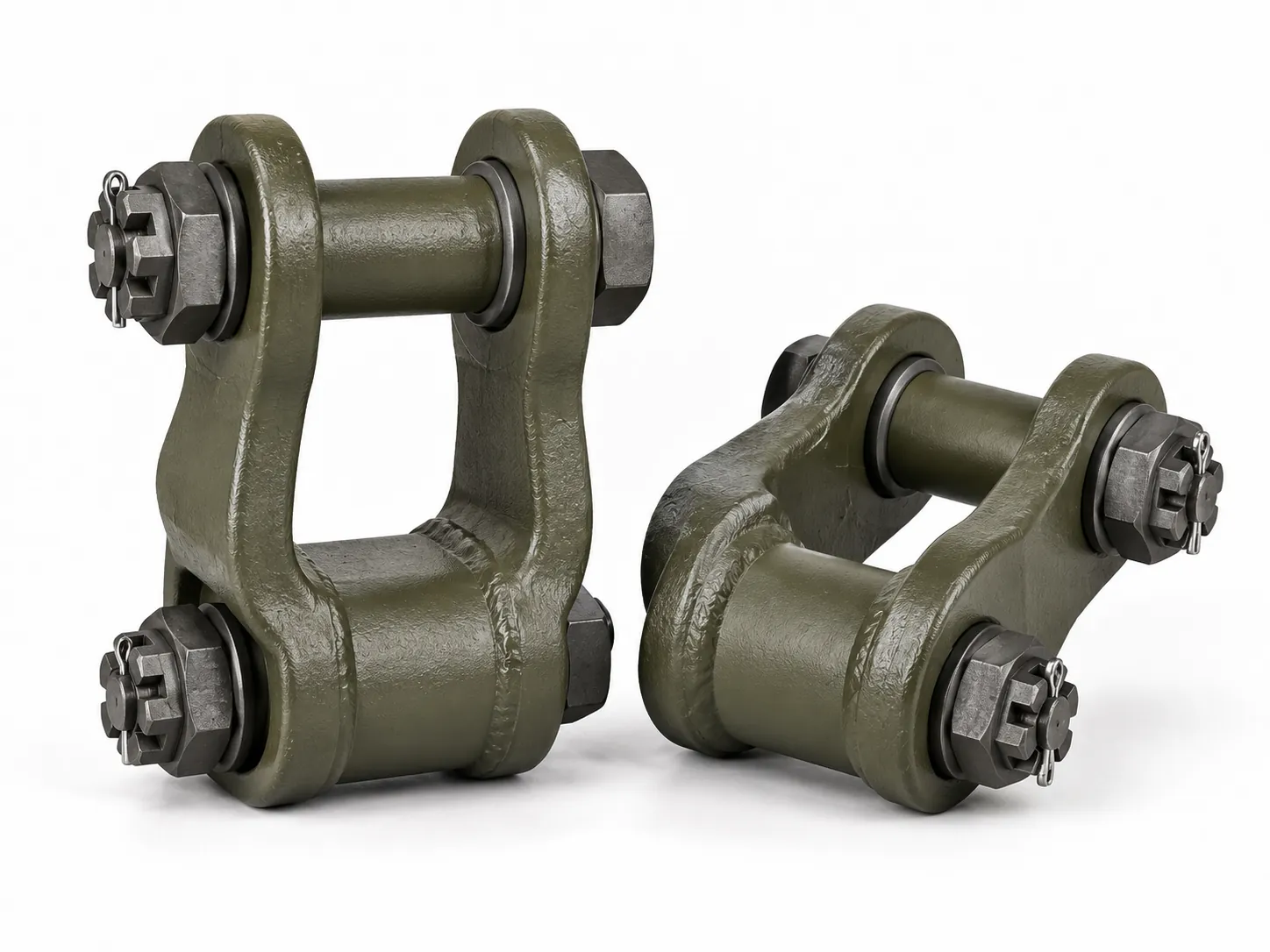

Reinforced shackle links with pivot pins and retained fasteners for leaf-spring suspension systems.

Product overview

Leaf-spring shackle assemblies provide the articulated connection that allows spring length to change through suspension travel. Correct geometry and pin/bushing dimensions are essential to ride height, articulation and clearance.

Typical configuration and use

Reinforced double-side shackle construction
Heavy-duty pivot pins / bolts and retaining hardware
Designed for leaf-spring articulated mounting points
Hole spacing and bushing size must match the spring and chassis bracket

CategorySuspension

ApplicationArmored, reinforced & special-purpose vehicles

Commercial statusSpecification and price on request

Request a Quote →

Fitment data

Information required for an accurate quotation

We do not publish invented universal dimensions or load ratings. The correct specification depends on the actual vehicle, suspension position and conversion. Please include the following details:

Center-to-center shackle hole spacing
Pin/bolt diameter and bushing width
Plate thickness and overall assembly width
Vehicle model, spring location and photos of existing mount

Why fitment verification matters

Armoring and additional equipment can change vehicle mass, axle load, ride height and suspension travel. A part that looks similar may still have different dimensions, mounting geometry or load characteristics. Final suitability must therefore be confirmed against the vehicle and installation.

Read: Suspension Planning for Increased Vehicle Weight →
