Suspension component

Heavy-Duty Multi-Leaf Spring Assemblies

Multi-leaf spring packs with eye bushings for high-load rear suspension and special-purpose vehicle applications.

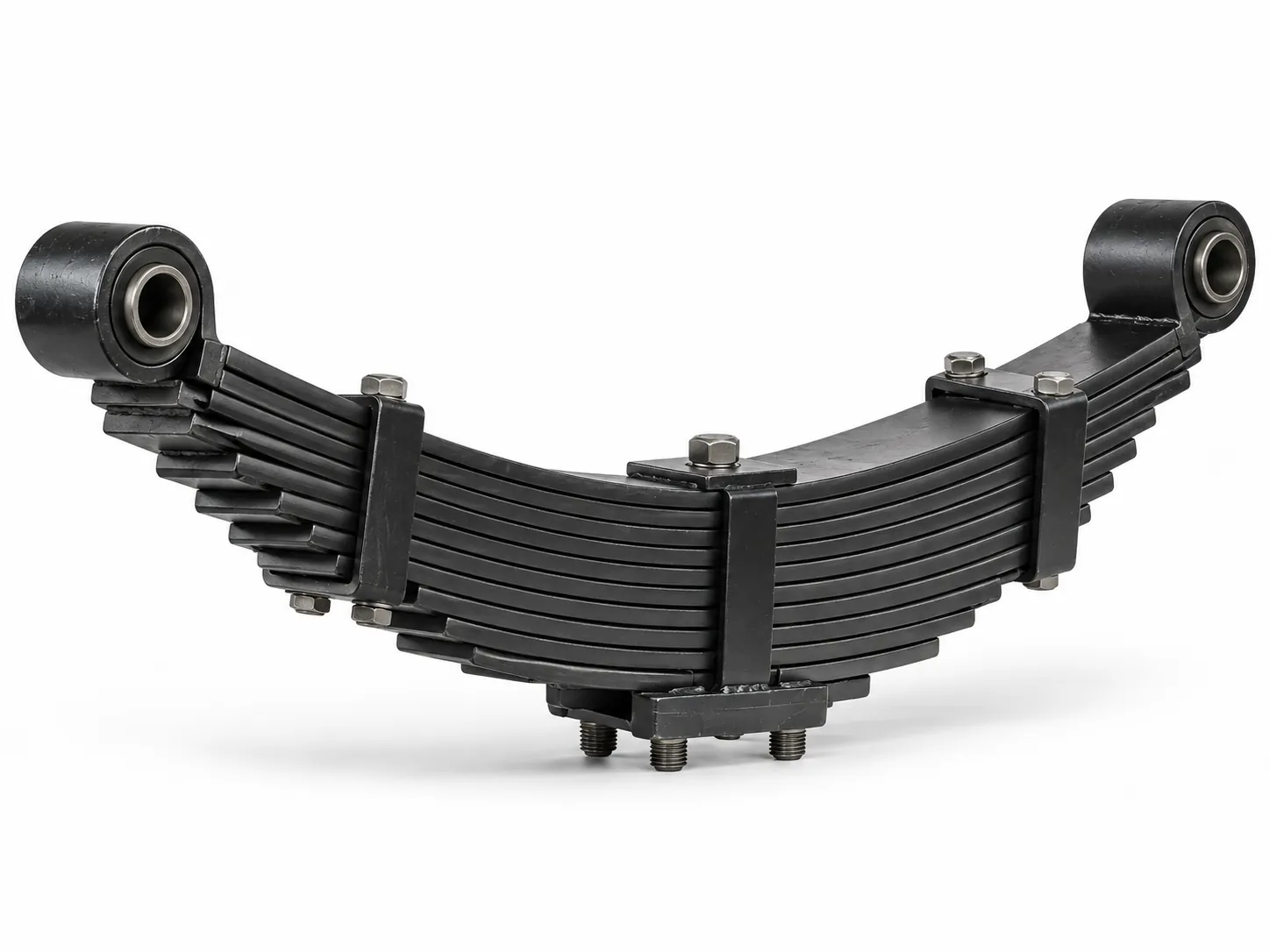

Heavy-duty multi-leaf spring pack for armored vehicle suspension

Product overview

A multi-leaf spring assembly uses stacked spring-steel leaves to carry axle load and control suspension movement. Replacement packs must match the spring geometry, width, eye configuration and intended load.

Typical configuration and use

Multi-leaf spring-steel construction
Spring-eye bushings at the mounting ends
Designed for axle-load carrying and suspension location
Leaf count alone is not enough to determine correct fitment

CategorySuspension

ApplicationArmored, reinforced & special-purpose vehicles

Commercial statusSpecification and price on request

Request a Quote →

Fitment data

Information required for an accurate quotation

We do not publish invented universal dimensions or load ratings. The correct specification depends on the actual vehicle, suspension position and conversion. Please include the following details:

Vehicle model, year and axle
Eye-to-eye length or manufacturer part number
Spring width, leaf count and approximate arch
Axle load / vehicle mass and U-bolt seat dimensions

Why fitment verification matters

Armoring and additional equipment can change vehicle mass, axle load, ride height and suspension travel. A part that looks similar may still have different dimensions, mounting geometry or load characteristics. Final suitability must therefore be confirmed against the vehicle and installation.
